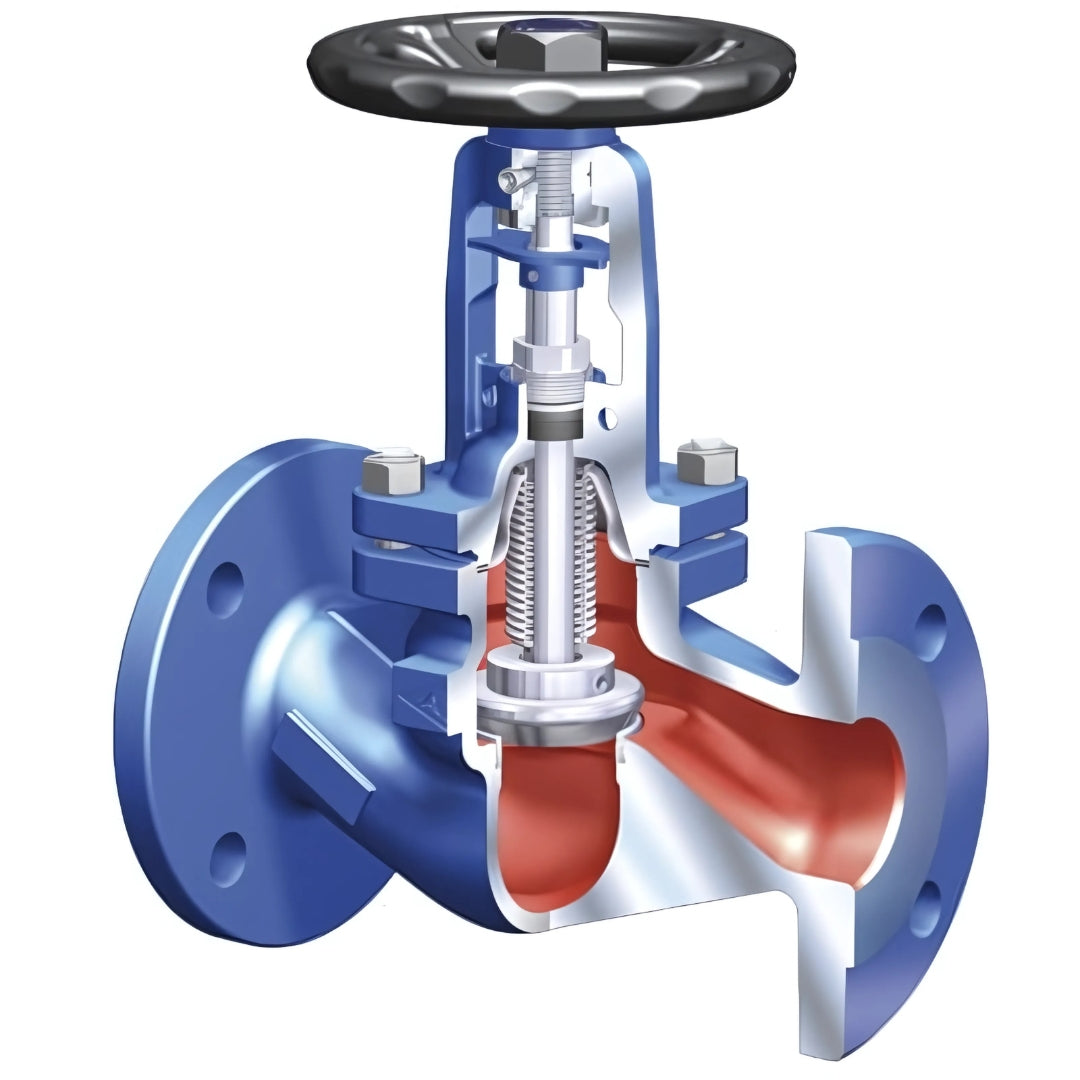

FABA+ Bellows Sealed Globe Valve (Flanged PN40, Cast Steel Body)

The FABA+ Bellows Sealed Globe Valve with PN40 flanged ends and a cast steel body is built for high-performance isolation and flow regulation in steam, gas, and process fluid systems. Designed for demanding industrial environments, this valve features a multi-layer stainless steel bellows seal that eliminates stem leakage — ensuring maximum containment, environmental protection, and operator safety.

The cast steel body delivers high mechanical strength, excellent thermal resistance, and compatibility with elevated pressure conditions. Rated to PN40, the valve operates reliably in pipelines up to 40 bar, making it ideal for use in power generation, petrochemical facilities, and high-temperature steam systems. The combination of a rising stem, bellows seal, and backseat guarantees dual sealing protection and long-term operational integrity, even under frequent thermal cycling.

As part of the trusted ARI Armaturen FABA+ range, this valve provides exceptional control precision, low maintenance requirements, and superior performance in mission-critical applications where leakage is not an option.

Key Features

Cast Steel Body
Rugged and thermally stable for use in high-pressure, high-temperature process environments.

PN40 Flanged Connections
Handles pressures up to 40 bar, suitable for heavy-duty steam and fluid networks.

Bellows Seal Technology
Zero stem leakage design using stainless steel bellows for full emission containment and operational safety.

Backseat Safety Feature
Provides secondary stem sealing when the valve is fully open, allowing safe maintenance of gland packing.

Accurate Throttling and Shut-Off
Globe valve design ensures smooth modulation and tight shut-off with minimal pressure drop.

Optimised for Industrial Applications
Perfect for steam boilers, thermal oil systems, power stations, and chemical processing lines.
