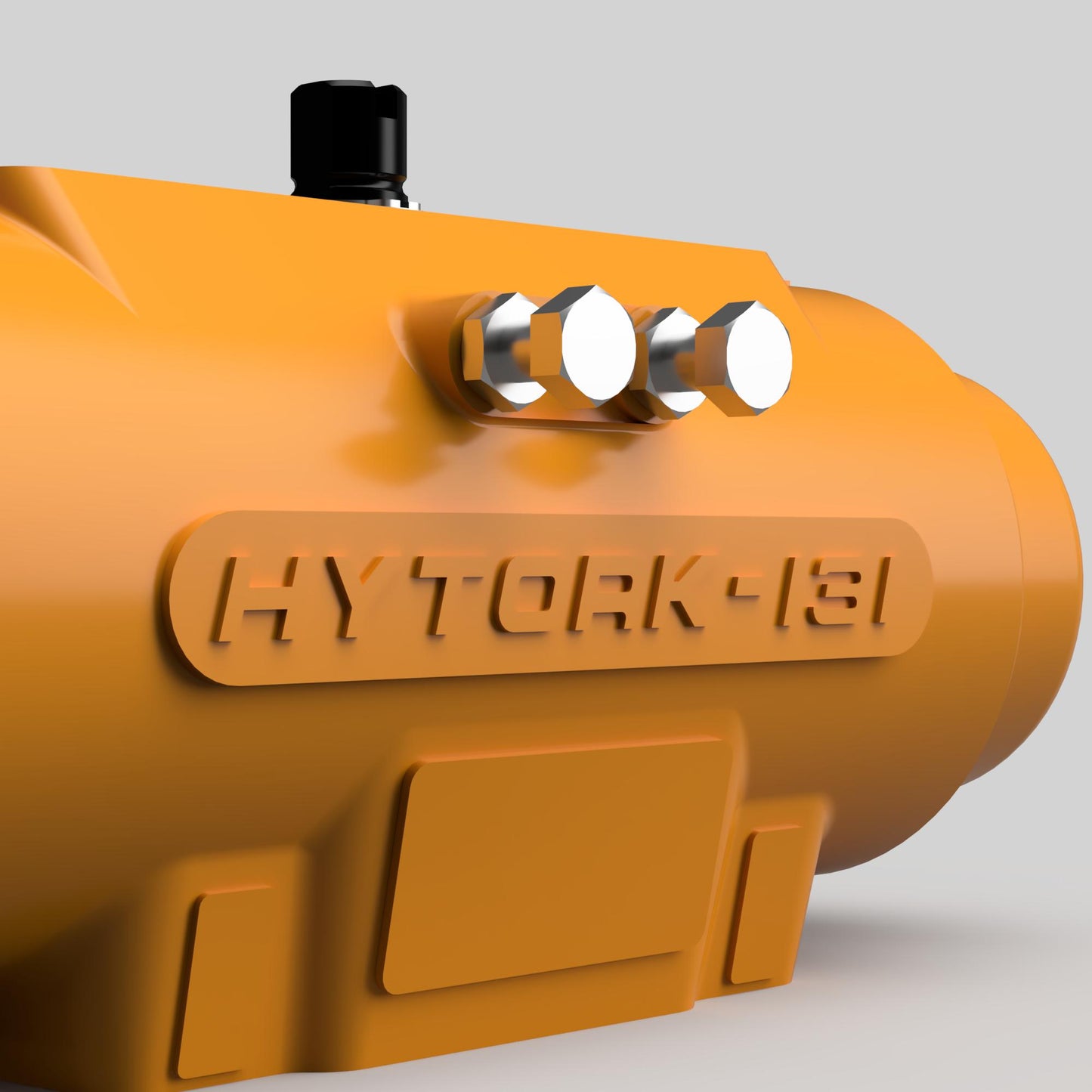

The Hytork XL Rack & Pinion Pneumatic Actuator is a robust, high-performance actuator designed to provide reliable and precise control for a wide range of industrial applications. Engineered with advanced features and durable materials, the Hytork XL actuator is suitable for demanding environments and critical operations, ensuring optimal functionality and longevity.
Key Features
-
High Torque Output:
- Delivers powerful torque, ensuring efficient operation of valves and other mechanical components.
- Suitable for heavy-duty applications requiring substantial force.
-
Rugged Construction:
- Constructed from high-quality, corrosion-resistant materials for durability in harsh environments.
- Features a hard anodised aluminium body and stainless steel fasteners to withstand extreme conditions.
-
Versatile Operation:
- Available in double-acting and spring-return configurations to meet various operational needs.
- Compatible with a wide range of operating pressures and temperatures.
-
Precision Control:
- Equipped with a rack and pinion design for precise and smooth motion control.
- Offers accurate positioning and repeatability for critical industrial processes.
-
Safety and Reliability:
- Incorporates fail-safe mechanisms to ensure safe operation in case of power or pressure loss.
- Designed with internal and external travel stops for safe and reliable positioning.
-
Easy Maintenance:
- Modular design facilitates easy assembly and disassembly for maintenance and repair.
- Long service intervals reduce downtime and maintenance costs.
-
Customisation Options:
- Available in various sizes and configurations to match specific application requirements.
- Can be fitted with optional accessories such as positioners, limit switches, and solenoid valves.
Applications
The Hytork XL Rack & Pinion Pneumatic Actuator is ideal for use in a variety of industries, including:
- Oil and Gas: For controlling flow in pipelines and processing plants.
- Chemical Processing: Ensures precise control of chemical reactions and material handling.
- Water and Wastewater Treatment: Automates valves in treatment plants for efficient water management.
- Power Generation: Regulates systems in power plants for optimal performance.
- Pharmaceuticals: Maintains stringent control in manufacturing and processing environments.
Parameter | Range |
---|---|
Pressure Range | 2.5 to 10 bar (36 to 145 psi) |
Temperature Range | -20°C to +80°C (-4°F to +176°F) standard; high and low-temperature versions available |
Torque Range | 10 Nm to 8,000 Nm (7 lb-ft to 5,900 lb-ft) |
Stroke Adjustment | ±5° at both ends for precise positioning |
Materials | Anodised aluminium body |
