Steam Valves

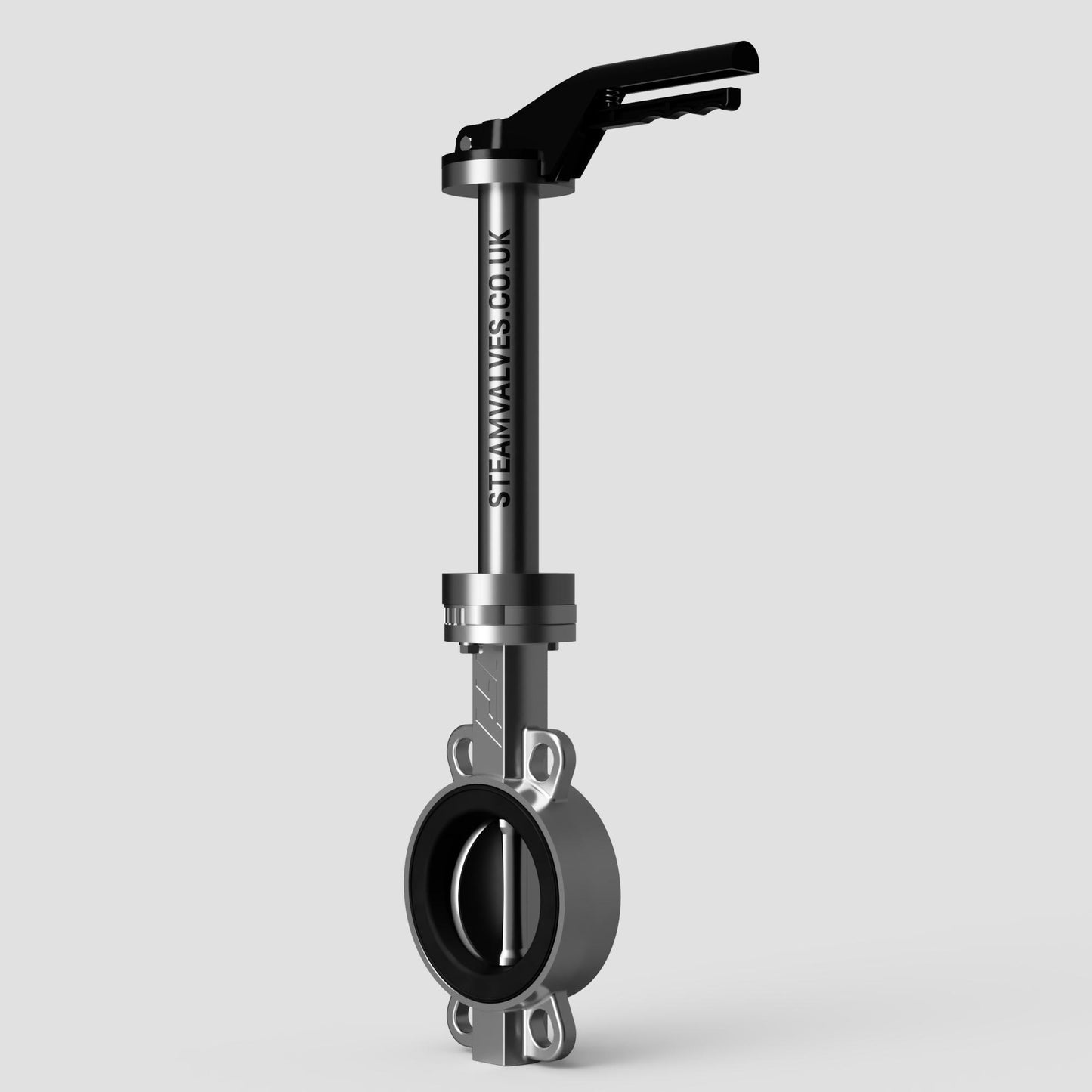

TTV Stainless Steel Wafer Butterfly Valve Steam Extension - EPDM Seat

TTV Stainless Steel Wafer Butterfly Valve Steam Extension - EPDM Seat

Regular price £419.99 GBP
Regular price Sale price £419.99 GBP
Sale POA
VAT Included
View full details

The TTV Stainless Steel Wafer Butterfly Valve with Steam Extension is a robust and reliable solution designed for high-performance applications. Featuring a wafer-style body and built to withstand pressures up to PN16, this valve is crafted from durable CF8M stainless steel, ensuring exceptional resistance to corrosion and long-lasting service life.

Key features include a concentric EPDM seat, which provides excellent sealing capabilities, even under extreme temperature conditions. The valve is equipped with a 100CM extension lever, allowing for easy operation and control. The actuator function includes an open-close lockable notch plate, providing added security and control flexibility.

This TTV valve is ideal for installations requiring reliable and precise flow control, with a face-to-face dimension of 33mm. Its minimalistic design, with no actuator housing or manual override, makes it a streamlined and efficient choice for various applications. The valve is engineered by TTV, a trusted brand known for high-quality valve solutions.

Technical Specifications:

  • Connections: Wafer
  • Pressure Design: PN16
  • Body Design: Wafer
  • Body Material: CF8M Stainless Steel
  • Seat Design: Concentric
  • Seat Material: EPDM
  • Actuator Function: Open Close Lockable Notch Plate
  • Actuator Type: Extension Lever 100CM
  • F2F Dimension: 33mm
  • Brand: TTV
