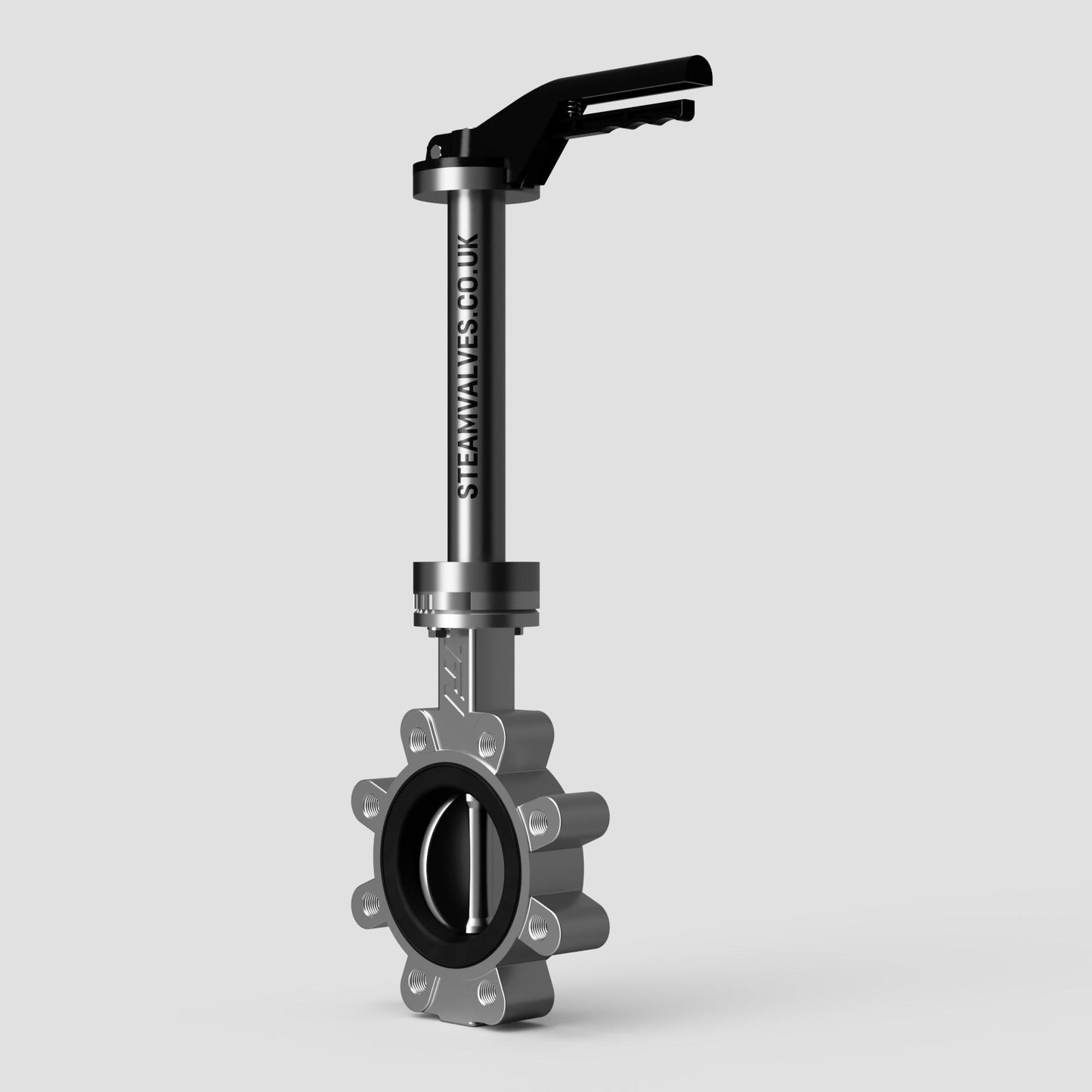

TTV Stainless Steel Lugged Butterfly Valve Steam Extension - EPDM Seat

The TTV Stainless Steel Lugged Butterfly Valve with Steam Extension is designed for high performance and durability in demanding applications. Featuring a CF8M stainless steel body, this valve offers excellent resistance to corrosion, making it ideal for steam and other aggressive media.

Key features include:

• Connections: Lugged, ensuring secure installation and removal without disrupting the pipeline.
• Pressure Design: Rated PN16 for robust performance in high-pressure systems.
• Body Design: Lugged body for superior sealing and durability.
• Seat Design: Concentric seat arrangement, promoting efficient sealing and flow control.
• Seat Material: EPDM seat, providing excellent flexibility, chemical resistance, and temperature stability.
• Actuator Function: Open/Close functionality with a lockable notch plate for secure positioning.
• Actuator Type: Equipped with a 100CM extension lever, allowing easy manual operation in hard-to-reach areas.
• Manual Override: None.
• F2F Dimension: 33mm, ensuring compact installation.
• Brand: Manufactured by TTV, a leader in valve technology.

This valve is built to last, offering reliable performance in steam systems, with an EPDM seat that ensures long-lasting operation even in challenging environments. Ideal for industrial use, this valve provides excellent flow control and is easy to operate with its extension lever.
