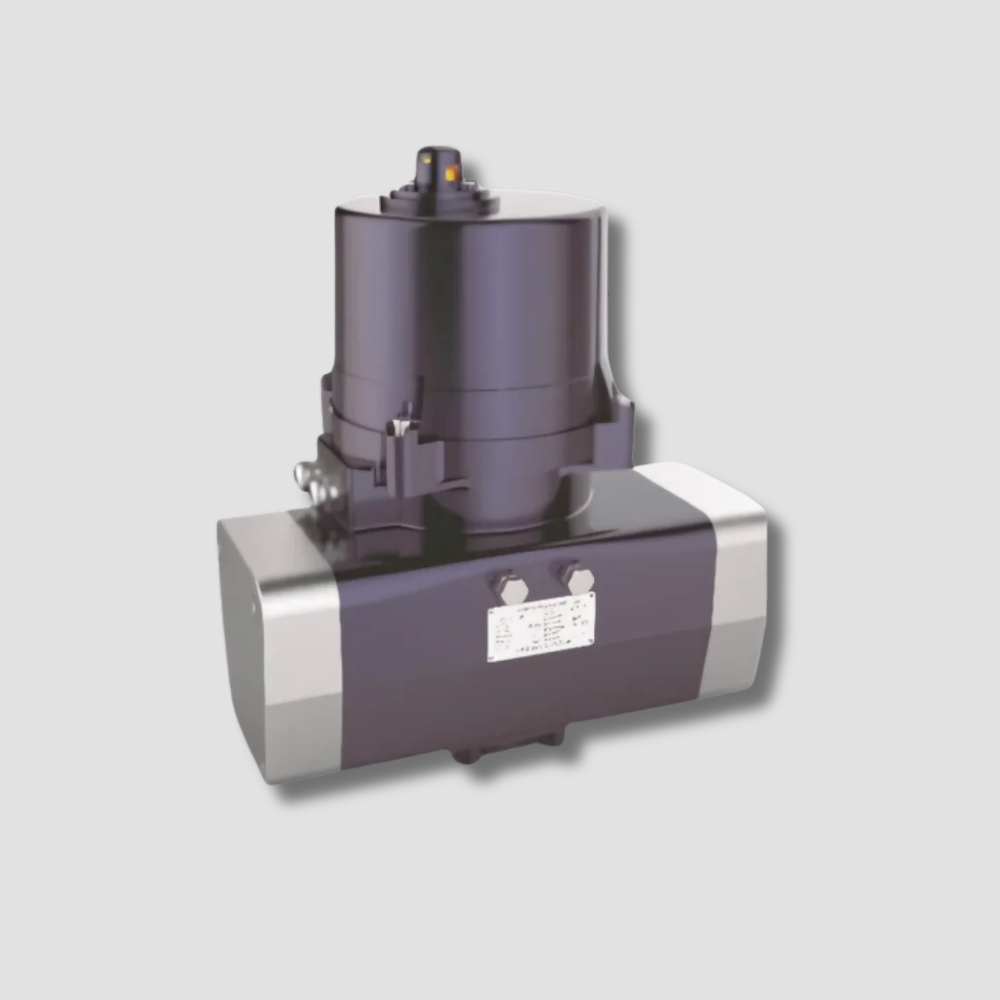

The VTMR series spring return electric actuator employs a spring-driven rack and pinion mechanism, delivering torque capacities ranging from 50Nm to 300Nm. Under normal power conditions, the actuator uses a motor-driven system to charge the spring. In the event of a power failure, the spring releases its stored energy, immediately returning the connected devices to a safe position, either fully open or closed. This design ensures smooth and stable operation, effectively preventing any sudden pipe bursts (hammer-blow effect).
- Body Materials: Nylon, Spring Steel, 34# Steel, 40CR, Tempered Glass, Ceramic, Q235, & Bearing Steel
- Certifications: ISO 9001:2015, SGC MD 2006/42/EC, & DNV
- Working Temperature Range: -25°C to 65°C
- Safety Integrity Grade: SIL2
- Torque Range (NM): 50 to 300
